1. Scope of application:
Chronic non-specific pain, such as back pain, neck, shoulder, waist and leg pain, etc.
Diseases caused by joint disorders, including cervical spondylosis, lumbar disc herniation, etc.
Sports injuries and postoperative rehabilitation of joints.
Motor function training, balance training, and gait abnormality training after neurological injury in hemiplegia, paraplegia, and cerebral palsy.
2. Technical features:
Neuromuscular control training
Activate core stabilizing muscle groups
Evaluation and treatment system of weak chain testing combined with closed chain exercise training
Painless and progressive active training
3. Product features;
The suspended rehabilitation workstation is based on neuromuscular activation technology and aims to permanently improve musculoskeletal diseases. It is a comprehensive method for treating injuries and chronic pain, including diagnosis and treatment systems.
The core of the diagnostic system is weak chain testing, which can accurately screen for weak chains.
The treatment system includes muscle relaxation training, joint range of motion training, traction, joint stability training, coordination training of sensory movements, progressive impedance training, etc.
Using methods such as suspension, vibration, and load changes to treat motion control system diseases, achieving coordinated and unified nerve, muscle, and joint functions, stimulating the coordination and contraction ability of the trunk muscles and major muscle groups in the body, and achieving rehabilitation goals.

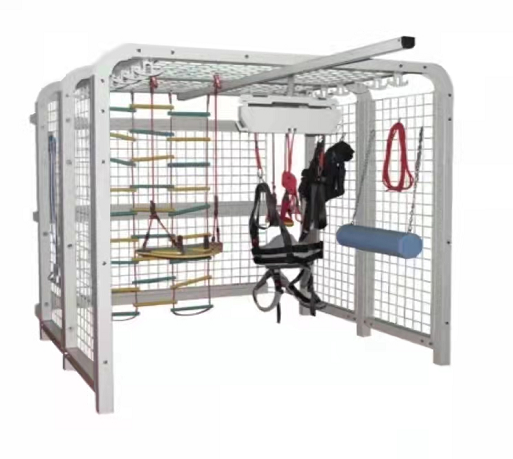

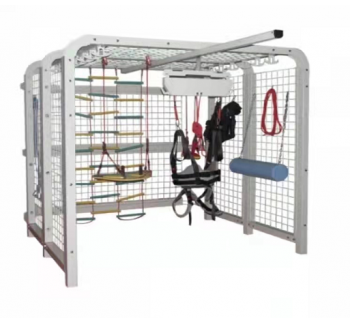

1. Suspension rehabilitation trainer: 1 suspension net frame, slide rail, and suspension machine head
2. Large wooden boat: 1740 * 810 * 135mm, with a maximum load-bearing capacity of 100kg
3. Wooden tower: 375 * 183 * 530mm
4. Rope ladder:
Small wooden stick: 30 * 370mm
Big wooden stick: 45 * 1100mm
Overall size: 1100 * 2500mm
5. Elastic band
6. Suspension shoes: 175 * 95 * 25mm
7. Suspension drum: 22 * 80
8. Auxiliary hanging rope (red 30cm): 30cm long, capable of bearing 50kg
9. Auxiliary hanging rope (red 60cm): 60cm long, with a load capacity of 150kg
10. Red elastic auxiliary hanging rope: 60cm long, capable of bearing 50kg
Tensile range (%): 33 50 100 150
Resistance (kg): 8 9.2 13 18
11. Black elastic auxiliary lanyard: 60cm long, capable of supporting 30kg
Tensile range (%): 33 50 100 150
Resistance (kg): 4 4.7 6.7 8.6
